Free Revit Family: Fire Rating Lines


This month, we’re offering a free family for download: Fire Rating Lines.

We were looking for a “more graphic” way to show fire rating lines, as compared to the traditional dash-dot graphics. In order to achieve that we built these lines as repeating details. The line weight and color are controlled by the Detail Items -> Heavy Line settings. The project file containing the families is in Revit 2015 format so they can be used in versions 2015, 16 or 17.

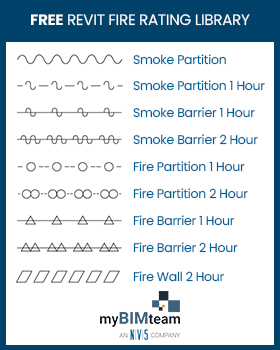

The nine types shown in the image are included, and you can of course call the line types whatever you want. Just copy and paste them into your project.  Enjoy!
