Church of the Open Word

Description

  • Location: Newtonville, MA
  • Square feet: 4,500 S.F. Church and 3,000 S.F. Parish House
  • Levels: 2 Levels
  • Details: Details: After scanning, we delivered 2D drawings for the client to use for planning. Should the project move forward, all the 3D details are in the point cloud and can be used to develop a complete 3D model and related design documents.

Deliverables:

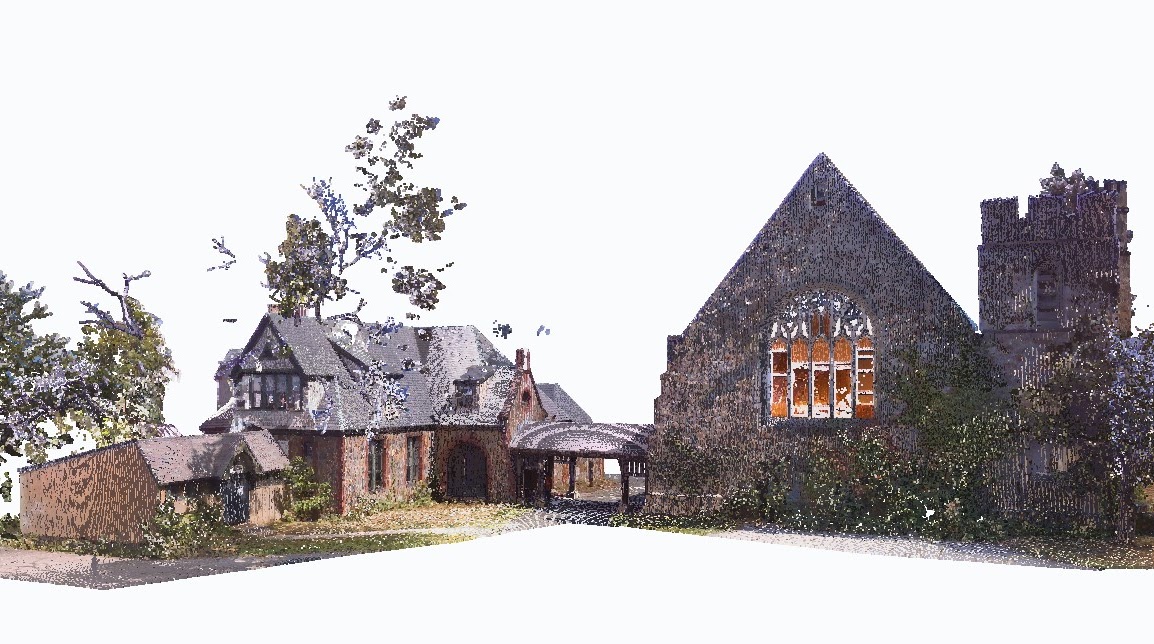

  • Point Cloud
  • Virtual Tour
Level 1 - Revit Floor Plan and Point Cloud
Level 2 - Point Cloud
Level 3 - Revit Floor Plan

Truss Section - Point Cloud

View More

Section Cut - Revit

View More
